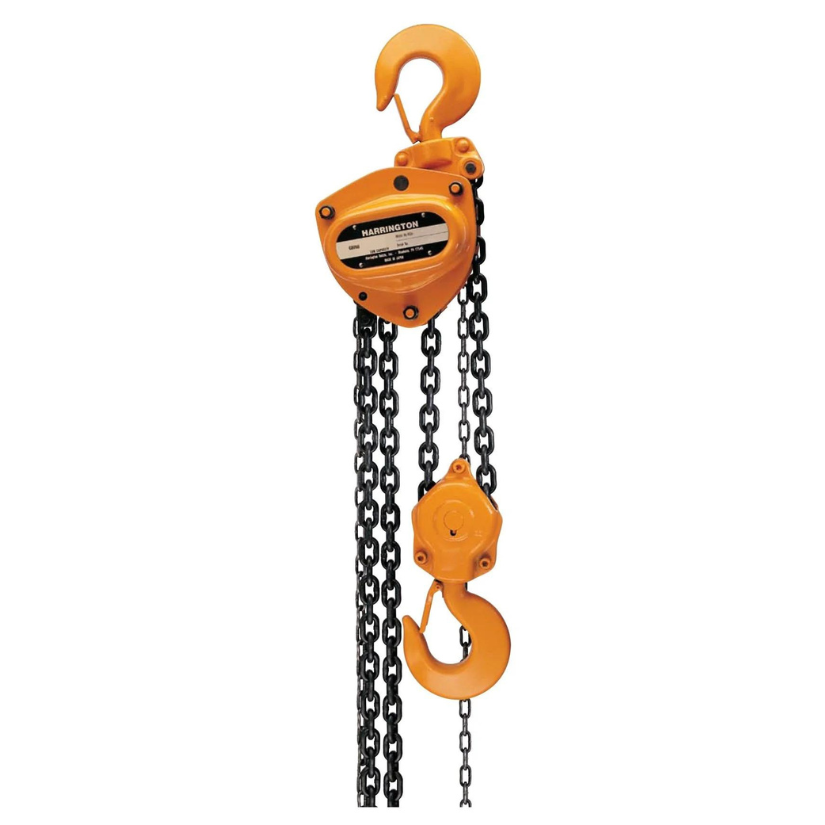

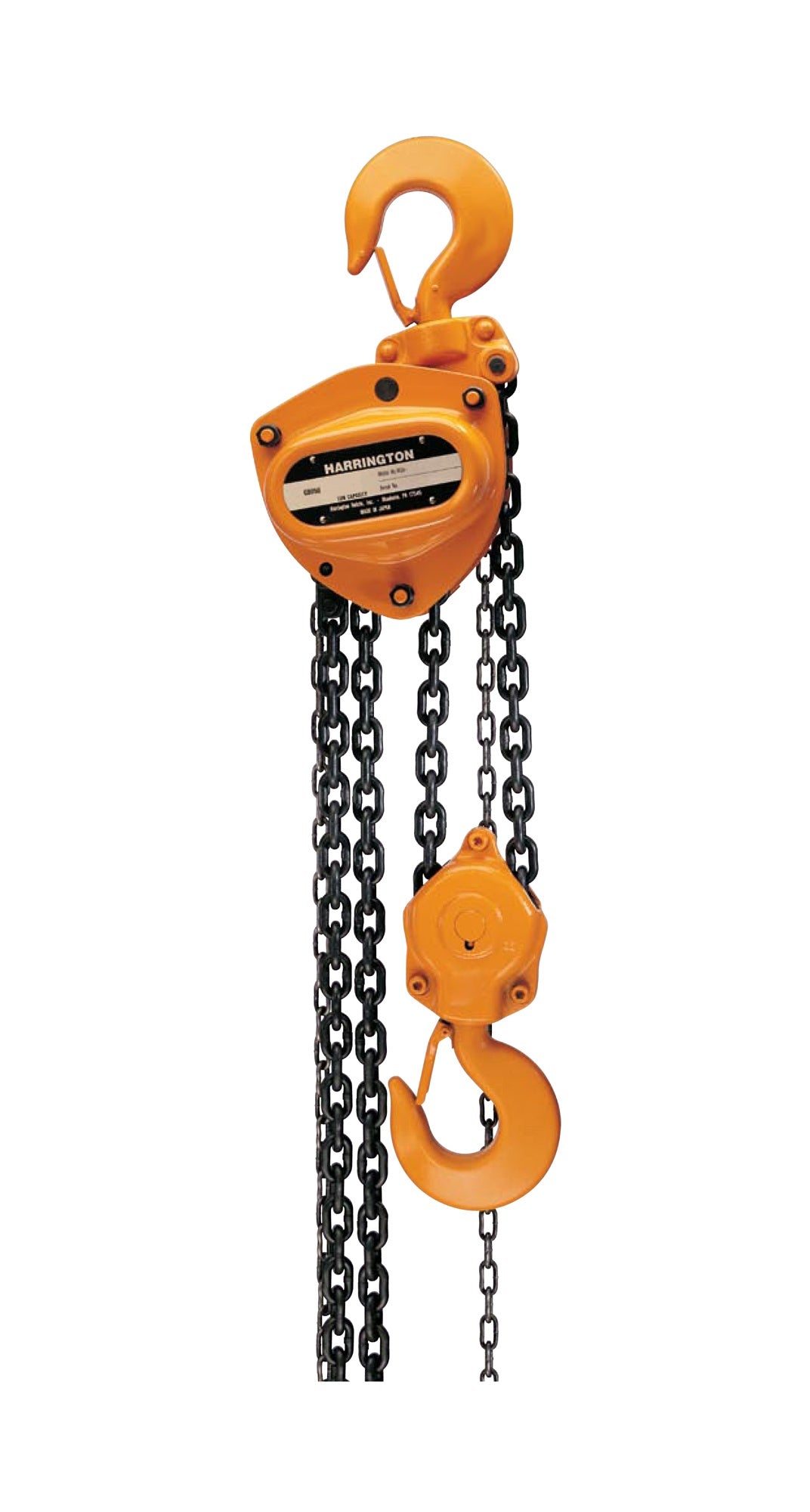

3 Ton Harrington CB | Hand Chain Hoist

CAPACITY

• 1/2 -100 Ton

COMPLIANCE

• ANSI/ASME B30.16, “Safety Standard—Overhead Hoists (Underhung).”
• ANSI/ASME HST—2M, “Performance Standard for Hand Chain Manually Operated Chain Hoists.”

BODY

• Heavy-duty, high-impact all steel construction
• Rugged gear case and hand wheel cover
• Compact design for low headroom and portability

OVERLOAD PROTECTION

• Slip clutch device prevents the hoist from lifting damaging loads beyond rated capacity

LOAD CHAIN

• Grade 100
• Heat-treated, manganese alloy steel resists abrasion and wear
• High-impact steel chain guide
• Standard Lift: 10' or 20'

GEARS

• Double reduction gearing requiring very low effort to operate
• Induction heat-treated and case-hardened
• Enclosed to protect from dust and water

HOOKS

• Forged, heat treated alloy steel hooks open gradually without fracturing under excessive load
• Top and bottom hooks have heavy-duty hook latch

OPERATION

• Hand chain operated
• Reduced operator fatigue through efficient drive train

BRAKE

• Double pawl springs for extremely reliable operation and instant brake activation

OPTIONS

• Chain container to keep chain clean and out of the way
• Corrosion-resistant chain for corrosive environments
• Inspection hooks
• Custom lift lengths to suit your requirements
