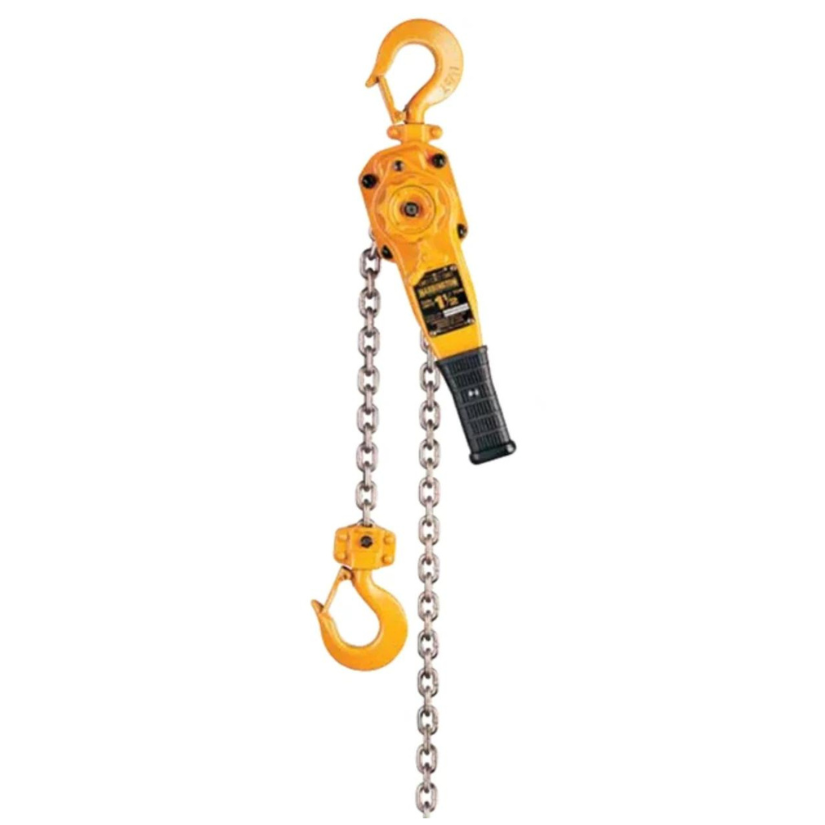

3/4 Ton Harrington LB | Lever Hoist

3/4 Ton Harrington LB | Lever Hoist

Regular price $481.11 USD
Regular price $559.43 USD Sale price $481.11 USD
Sale Sold out
Harrington LB BrochureHarrington LB Manual

The Harrington LB lever hoist forged an entirely new, industry-leading benchmark by being smaller, lighter, and stronger than any other lever hoist on the market. This hoist can be used horizontally, vertically, inverted or at any other load angle and its proven strength and durability stand up in an endless array of applications.

CAPACITY
  • 3/4 - 9 Ton
COMPLIANCE
  • ANSI/ASME B30.21, “Safety Standard—Manually Lever Operated Hoists.”
  • ANSI/ASME HST—3M, “Performance Standard for Manually Lever Operated Chain Hoists.”
BODY
  • Rugged, high-impact, all-steel construction weighs less than comparable aluminum models
  • Compact and lightweight
  • Open design for easy inspection and cleaning without dismantling the unit
HOOKS
  • Forged, heat-treated alloy steel hooks open gradually without fracturing under excessive load
  • Top and bottom hooks have heavy-duty hook latch
  • Top and bottom hooks rotate 360 degrees
OPERATION
  • Rubber grip handle for non-slip operation
  • Operate in close quarter with short handle and 15-degree recovery stroke
  • Patented spring-loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load
GEARS
  • Highly durable, split-load double reduction gears
  • Induction heat-treated and case-hardened
  • Enclosed to protect from dust and moisture
LOAD CHAIN
  • Nickel-plated for corrosion resistance
  • Grade 100 heat-treated
  • Standard lift: 5', 10', 15' or 20'
BRAKE
  • Weston-style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
  • The totally enclosed brake mechanism protects from dirt and moisture
OPTIONS
  • Slip clutch to prevent the hoist from being used to lift damaging loads beyond rated capacity
  • Top hook extender to locate the hoist body away from its attachment point
  • Load limit warning handle to alert the operator when the hoist is being used to lift damaging loads beyond rated capacity
  • Shipyard / Point hooks accommodate point loading
  • Bullard® and Shur-Loc® hooks provide a locking latch feature
  • Inspection hooks allow for inspection of the internal parts of the hook set
  • Custom lift lengths to suit requirements
