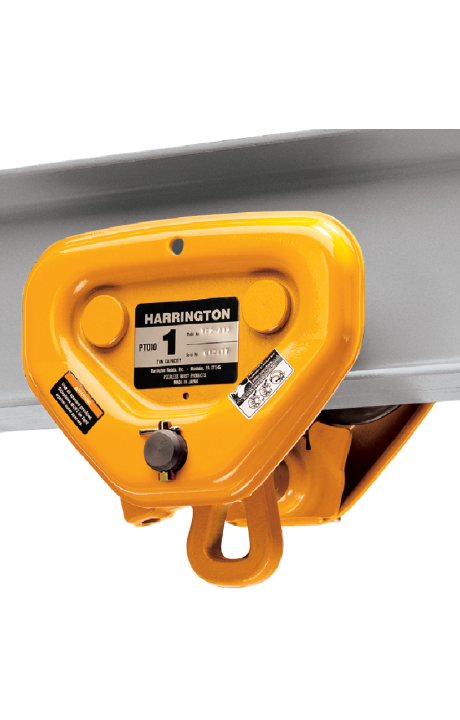

Harrington PT | Push Trolley

Harrington's PT push trolleys are versatile, durable and are an economical choice for adding mobility to our hoists. Featuring specially designed contoured wheels that ensure reliable tracking, and sealed ball bearings that provide smooth operation.

CAPACITY

• 1/2 - 10 Ton

COMPLIANCE

• OSHA Section 1910.179 of Title 29, “Occupational Safety and Health Regulations—Overhead and Gantry Cranes.”
• ANSI/ASME B30.11, “Safety Standard—Monorails and Underhung Cranes.”
• ANSI/ASME B30.17, “Safety Standard—Overhead and Gantry Cranes (Top Running Bridge, Single Girder, Underhung Hoist).”

BODY

• A strong, lightweight, and compact design
• Load equalizing suspension distributes the load evenly to all wheels

WHEELS

• Specially designed contoured wheels will fit both tapered and flat-flange beams

COMPATIBILITY

• Adjustable flange width will fit a wide variety of beam flange widths
• Maintenance-free low friction design

BEARINGS

• Lubricated for life
• Sealed to avoid maintenance hassles and provide smooth operation

OPERATION

• For load travel when electric power is not necessary or available

OPTIONS

• Rubber bumpers
• Variety of suspenders
• Flange extenders to accommodate wide flange applications
